Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

Model NO. : kxd202306

Application : Industrial

Material : Steel

Type : Pile-ground Bracket

Raw Material : Customized

Helix : Customized

Shaft : Customized

Transport Package : Steel Pallet

Specification : customised

Trademark : KXD

Origin : China

HS Code : 7308900000

Supply Ability : 50000 Sets Per Year

Package Size : 100.00cm * 50.00cm * 3.00cm

Package Gross Weight : 25000.000kg

Customization : Available

After-sales Service : One Year

Warranty : One Year

Shipping Cost : Contact the supplier about freight and estimated delivery time.

: Support payments in USD

Secure payments : Every payment you make at Made-in-china.com is protected by the platform.

Refund policy : Claim a refund if your order doesn't ship, is missing, or arrives with product issues.

Contact Now

Helical Anchor Screw Piles Solar Photovoltaic Brackets
Better Steel. All of our 2.875"/3.5" diameter helical piles are manufactured by GB Q355B/API 5CT J55 tubes. And many of our other products are made from ASTM A513 steel tubing.(Q235B/Q355B ERW or SMLS)

Q355B pipes has good plasticity and weld-ability used for bridge structure to bear dynamic load, building structure, cold areas below -40ºC. Yield strength: 355Mpa (51ksi); Tensile strength:450-630Mpa(65-91ksi)

-Manufacturing Standard. All our helical piles are built to meet or exceed ICC-ES AC-358 standards. We are ISO 9001:2015 certified with many products.

-HDG Quality. All of our products are in accordance with ASTM A123 and A153/EN ISO 1461 standards for hot-dip zinc coatings.

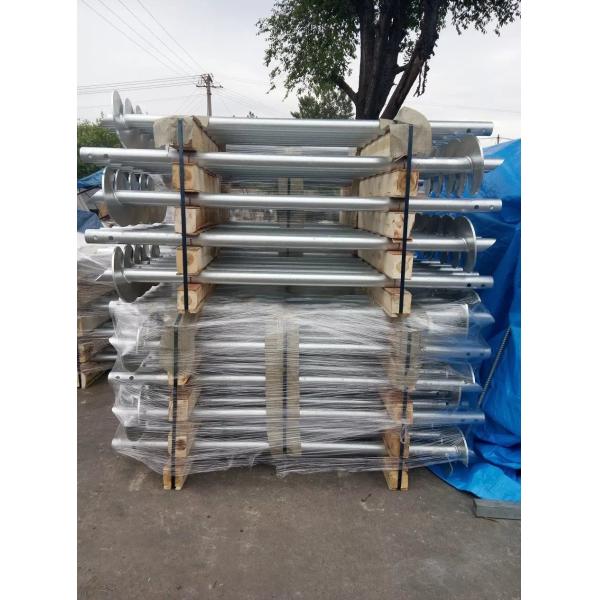

-Professional Export Packaging. Based on years of export experience, we support various packaging methods, such as wooden box/wooden pallet/steel pallet. To make sure the cargo safety and space saving.

Strict quality control. We have our own Independent Inspection&Packing workshop.

OEM/ODM: Avaliable; Samples: Avaliable

Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

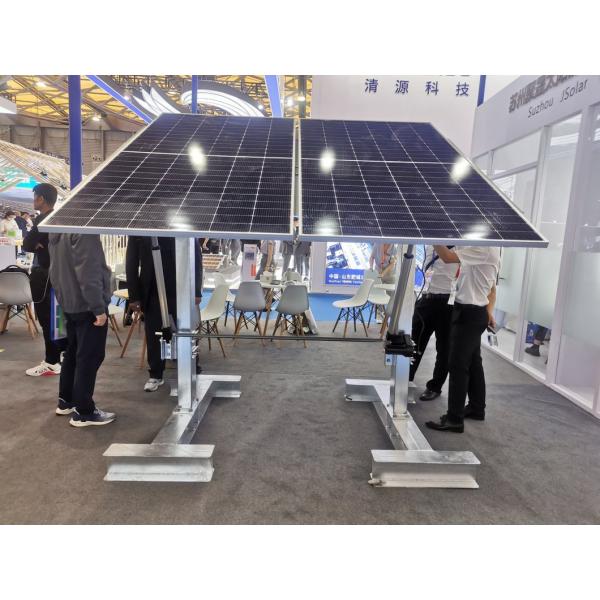

Solar Ground Screw,Ground Screw,Ground Screw Pile For Solar Panel Installation

The Ground Screw Piles can be used for both horizontal and vertical timber applications, e.g.posts or bearers.
Suits: 70*70mm. 90*90mm. 110*110mm. 120*120mm wooden post.
1. Insert the Ground Screw, twisting it until the stirrup base is level with the ground, ensure all stirrups are secure and level before constructions.
2. Insert timber beam into the U-bracket, leaving a 10-20mm gap.
3. Fix beam to U-bracket with one screw, ensure that the beam is level and fasten all remaining screw.
4. For permanent fixation it is recomended that a bolt is inserted through the center hole of the U-bracket. All construction must comply with building code and council reulations. Suitable for fencing, gazebos, decking, cubby houses, sheds and carports, NO digging, NO concreting, NO waiting.

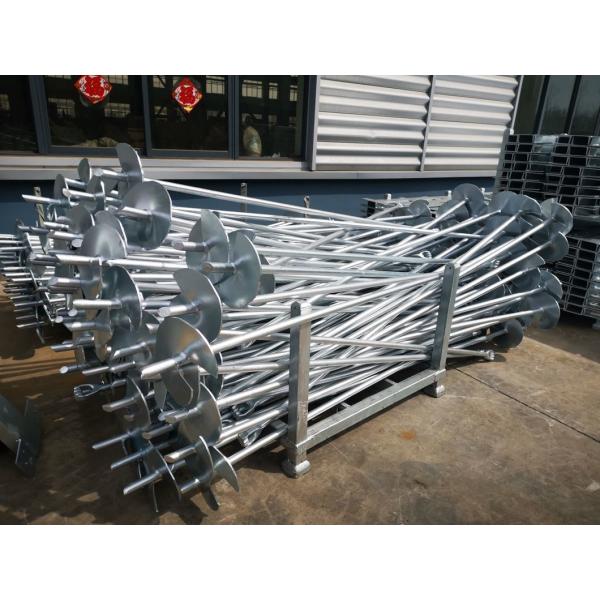

The first piece of the helical pile is called the lead; this is the piece that is first rotated into the ground. The lead has multiple helical blades, also referred to as helical bearing plates, that can vary in size, shape, and number. After the lead follows any number of extensions, depending on the required torque or depth. These are simply shafts that are bolted and pinned to the lead and to each other at their ends. The top of the pile is the incorporated into the foundation system via a bracket or other connection method.

Helical Piles are used worldwide to secure residential and commercial buildings, tower foundations, heavy equipment foundations, and many other deep foundation system applications.

The shaft can come in either a circular or a square cross section shape and is typically hollow.
Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized


Round Shaft Helical Pile
Shaft Size OD in (mm)	Wall Thickness in (mm)	Metal Area in² (cm²)	Perimeter in (cm)	Helix Size in	Helix Thickness in	Lead Length ft	Extension Length ft
2.875 (73)	0.203(5.2)	1.7 (11.0)	9.0 (22.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
2.875 (73)	0.276(7.0)	2.3 (14.8)	9.0 (22.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
3.5 (89)	0.300 (7.6)	3.0 (19.5)	11.0(27.9)	8/10/12/14	3/8 or 1/2	3/5/7	3/5/7/10
4.5 (114)	0.337(8.6)	4.4 (28.4)	14.1(35.9)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
6.625 (168)	0.28 (7)	5.58 (36.0)	20.8(52.8)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
8.625 (219)	0.25(6)	6.58 (42.5)	27.1(68.8)	8/10/12/14	3/8 or 1/2	3/5/7/10	3/5/7/10
All above sizes, steel grade are customizable.

Helical anchor system may be used to reestablish new foundations or restore present ones. Helical foundation anchors are used for lighthouses, roads, railroads, telecommunication, and in a lot of different businesses that need rapid installation or structure near to present constructions. Evidence, maintaining structures, other common places make use of because they are appropriate for compression in addition to tensile loads.
Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

What are Helical Anchors?
A helical anchor is a deep foundation solution which is used in situations when standard solutions cannot be applied to your foundation project. Situations where a foundation may be exposed to moisture for a longer period of time or where the soil conditions are not normal for use, in such a situation a deep foundation solution like a Helical anchor is required

PRODUCT DETAILS

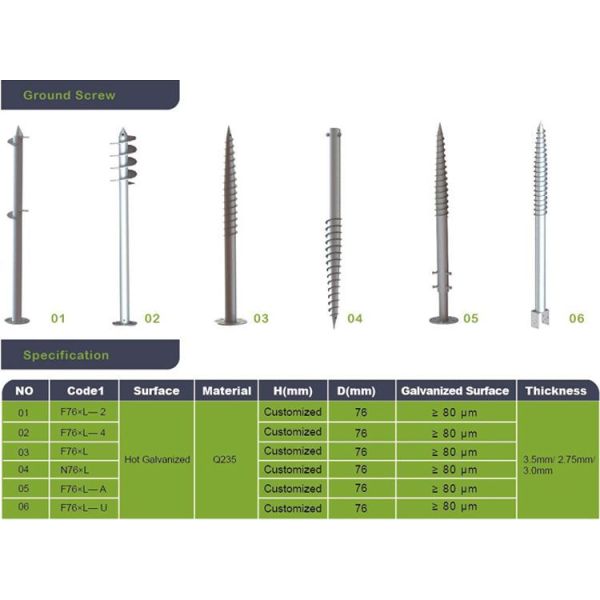

Product Name	Ground Screw
Connect Style	Flange (Triangle, Square, Round, Hexagon), Bolts
Material	Hot-dip Galvanized Steel
Surface Treatment	HDG DIN EN ISO1461
Length	300mm-3000mm
Pipe OD	48mm-219mm
Pipe Wall Thickness	1.8mm-4.0mm
Flange Thickness	8mm/10mm
Warranty	10 Years Warranty

What are the benefits of Helical Anchors?
There are various benefits of using a helical anchor. Some of them are as follows:

It is easy to install and remove
It can be installed easily in any weather condition
It reduces carbon footprints
It has minimum vibration
It reduces foundation costs
It does not require excess soil
The installation process is very clean and tidy as there are no spoils left after installation

What would be the cost of Helical Anchors?
There are various factors involved while deciding the cost of helical anchors. Those factors are:
Location
Type of work
Condition of foundation
Depth of pile installation
Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

How To Install Helical Anchors?
Helical anchors are installed before pouring the foundation or the soil foundation has been damaged
Helical anchors are screwed into the soil and depending upon the location they are attached to the pre-existing foundation with brackets or screws. After the helical anchors are installed the foundation is safe and is ready to combat any future damage due to compression and tension.

How many Helical Anchors are required ?
The number of helical anchors that you require depends upon the following factors:

Recommended distance between the piles
The type of structure

What is the purpose of Helical Anchors
The main purpose of a helical anchor is to transfer the structural load to the soil. There are various other applications also like tension, compression, and lateral load where helical anchors are used.

Industrial Helical Ground Anchors Screw Piles Solar Photovoltaic Brackets Customized

How to use Helical Anchors?

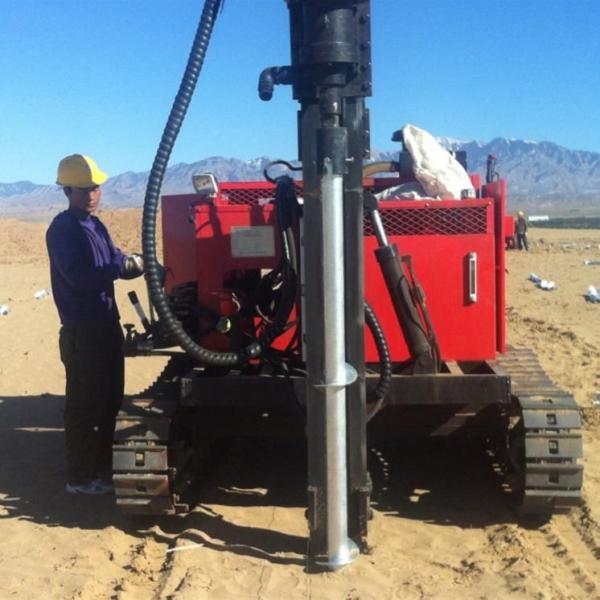

Drive the helical anchors into the soil up to the predetermined load capacity.
Space the helical anchors at predetermined intervals to share the weight of the structure.
For foundation repair works, attach the brackets to the base of the wall so that the weight is transferred to the anchor.
Install to a height below the ground level where they meet the required torque.

Where can i get helical anchors?
You can get it by searching for us by contacting us directly.

Where can i purchase helical anchors
You can contact us to purchase the best quality helical anchors at a very affordable price directly from us.
